Apex Atv USA

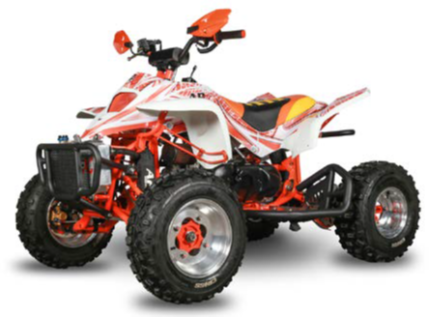

MXR90

MXR90

Regular price $6,599.00 USD
Regular price Sale price $6,599.00 USD
Sale Sold out
Body color: White

Race Ready Y10+ Class ATV

Race-Ready Quad, packs all the performance as standard, plus
all High-Performance Parts Includes

1. Oversize CVT and Slipper Clutch
2. Improved designed Chassis with Additional Gussets
3. Dual-Adjustable A-Arms and Long Travel Gas Shocks

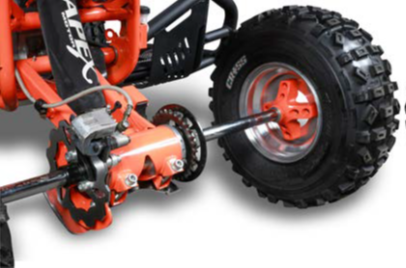

4. Heavy Duty Gusseted Swing Arm with Dual Bearing Axle Carrier and Long Travel Gas Rear Shock

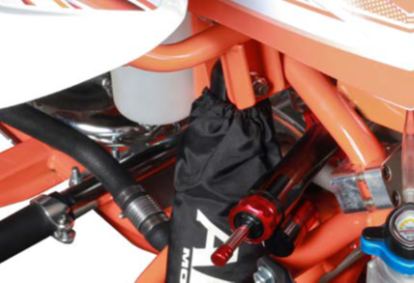

5. Steering Damper and Anti-Vibration Steering Stem

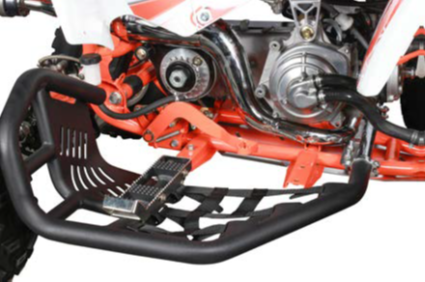

6. 1.5” Tube NERF Bars with Larger Heel Guard

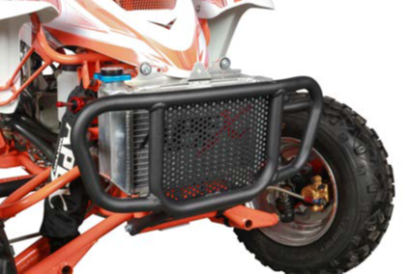

7. Oversize Aluminum Radiator with ONE-PIECE Design 1” Tube Bumper's.
8. Extra Wide SCM440+Cr Coated Rear Axle and Forged Aluminum Hubs with +50mm
9. Racing Exhaust Pipe

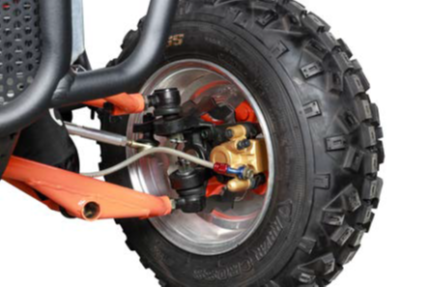

10.Front and Rear Hydraulic Disc Brakes with Crosscut Brake Rotors

Engine Features

• 90/100c.c. Two Stroke Liquid Cooled

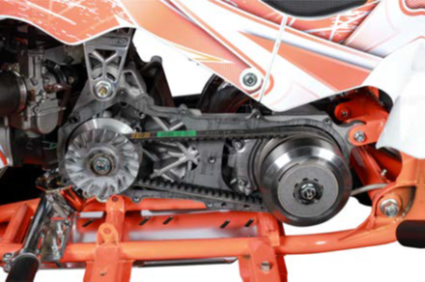

• Oversize CVT Transmission
• Kick Start
• 40:1 Premixed Oil Lubrication
• Reed Valve in Crankcase
• PWK 28 Carburetor
• CDI Ignition


Chassis Features

• 1650x1060mm(wheelbase)x730mm(seat height)
• 65x42in(wheelbase)x29in(seat height)
• 123kg (271lbs) dry weight
• Front/Rear Hydraulic Disc Brakes
• MAXXIS M958/ M957 Tires
• Standard Lip 8.0x5.0/10x5.0 Aluminum Alloy Wheel
• Chain Drive 428HDx90L
• 428x20T Front Sprocket / 428x30T Rear Sprocket Sprocket
